Better nand2tetris. Please Shimon. Please Yaron.

In script ... illegal terminator '}' -- when your code doesn't even contain that character on that line. This happens when you run the HDLsimulator from the command line and give it an HDL file rather than a test script.

Why not provide an intelligent error message - ATLO perl saying ". Missing semicolon on previous line?" You get the idea..

Also, support for underscores would be nice. Duh :)

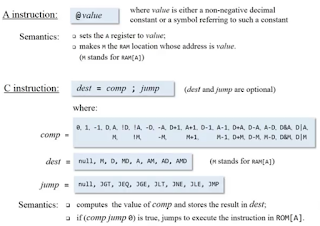

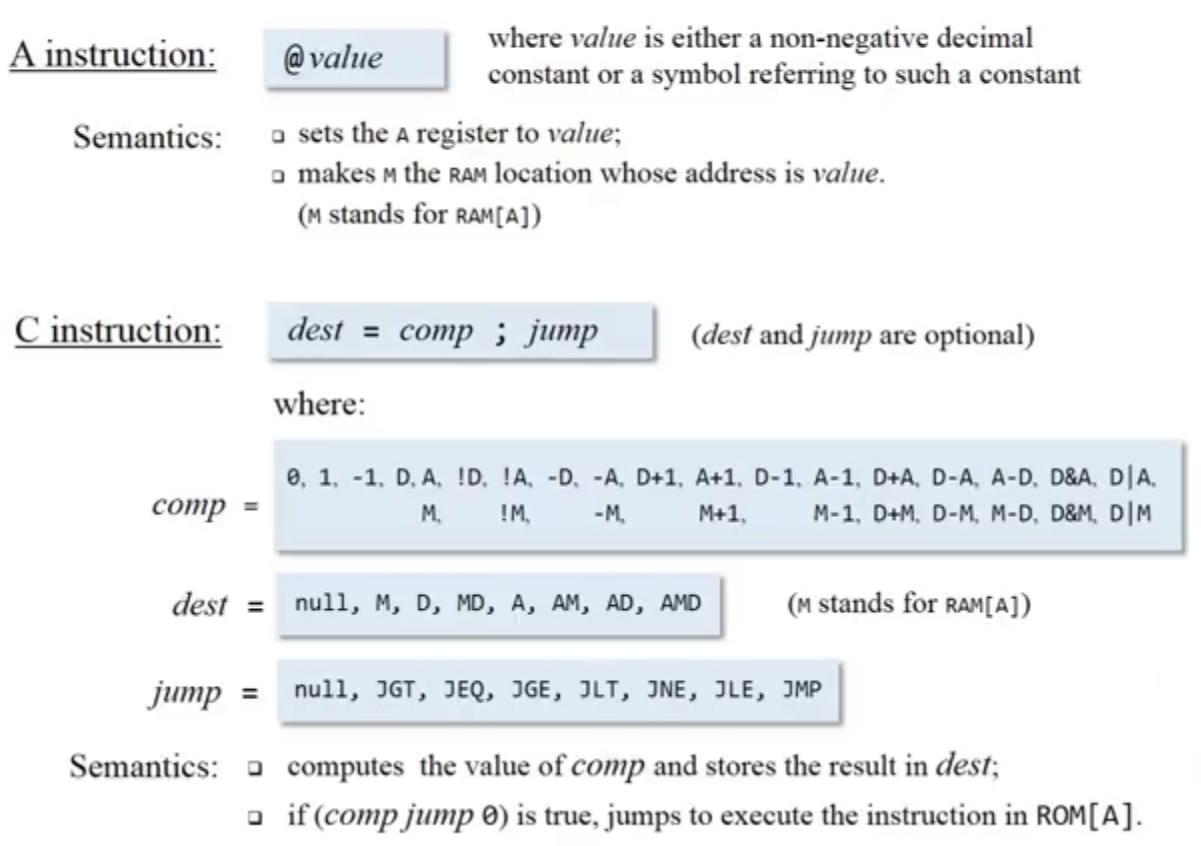

Nand2Tetris C Instruction Cheat Sheet

Screen : 256 rows of 32 16-bit words each (512 pixel columns)

Qualcomm Snapdragon Boot Android

Can you use a bluetooth mouse/keyboard combo? Yes - something like the Logitech MK700/M705 work fine.
Do you *have* to use a true HDMI cable (no HDMI/VGA adapter allowed)? Yes (I know, shame on Q - R-Pi can do this)

Shame on You Qualcomm! Dragonboard <<<< Raspberry Pi

http://www.96boards.org/forums/topic/dragonboard-410c-support-for-off-the-shelf-hdmi-to-vga-converters/#post-10330

Raspberry Pi - Never Too Late

Western Digital - 300+ GB drive for the Pi
Amazon - How to make an Echo out of your Pi
Wolfram - How to use Wolfram Language on your Pi

what can you add?

300 GB for the Pi : Now That's What I Call Progress

Way to go WDC!

http://en.ctimes.com.tw/DispNews.asp?O=HK03LA52CWYSAA00NO

Recommended Power Supply for DragonBoard 410C

https://www.arrow.com/en/products/wm24p-12-a-ql/autec-power-systems#page-9

Inner : 1.75 mm
Outer : 4.75 mm

Shame on you Hari and Ganz - I've seen the DB and I don't think this one will fit!

Dragonboard DB410C Boot DIP Switches

S6 switches :

4 : HDMI select
3 : USB host
2 : SD boot (boot from SD card)
1 : USB boot

Picture : http://www.96boards.org/products/ce/dragonboard410c/started/

If you want to boot into the OS that shipped with the board, then config needs to be 0-0-0-0
If you want to boot into an OS you flashed onto a uSD, then use 0-1-1-0
External command prompt via micro-USB : 0-0-1-0
from : https://www.coursera.org/learn/internet-of-things-dragonboard/lecture/eVNL8/boot-configuration
